| Feature | Description |
| Ports per module | 16 ports. Ports are numbered (left to right): |
| –Top row, odd numbered ports 1-15. | |
| –Bottom row, even numbered ports 2-16. | |
| 2 port groups | |
| Port ranges per port group: 1-8, 9-16 | |
| Port connector type | SC or RJ-45 depending on the type of GBIC transceiver installed in the module port |
| Cabling distance | Depends on the GBIC transceiver installed in the module port. Refer to Appendix B for descriptions of the GBIC transceiver types and supported cabling distances. |
| Speed | 1 Gbps |
| Buffer size | 512 KB per port—WS-X6516-GBIC |
| 1 MB per port—WS-X6516A-GBIC | |
| QoS | Number of egress queues: 3 |
| Number of ingress queues: 2 | |
| Number of thresholds per egress queue: 2 | |
| Number of thresholds per ingress queue: 4 | |
| Maximum frame size | Up to 9216 bytes per frame (both modules) |
| Module oversubscription rate | 2:01 |
| Supervisor engine support | Supported on the following supervisor engines: |
| Supervisor Engine 2 | |
| Supervisor Engine 32 | |
| Supervisor Engine 32 PISA | |
| Supervisor Engine 720 | |
| Supervisor Engine 720-10GE | |
| Software support | With Supervisor Engine 2—12.1(18a)E, WS-X6516-GBIC, 12.1(19)E1, WS-X6516A-GBIC |
| With Supervisor Engine 32—12.2(18)SXF | |
| With Supervisor Engine 32 PISA—12.2(18)ZY | |
| With Supervisor Engine 720—12.2(14)SX | |
| With Supervisor Engine 720-10GE—12.2(33)SXH | |
| Queues per port | Both modules: |
| Tx—1p2q2t | |
| Rx—1p1q4t | |
| Chassis/slot restrictions | No chassis or slot restrictions, the module can occupy any slot in any Catalyst 6500 or Catalyst 6500-E chassis. |
| Bus connection | 32-Gbps shared bus |
| Module upgrades available | |
| PoE support | Not supported. |
| Distributed forwarding support | Can be field-upgraded with either the WS-F6K-DFC, WS-F6K-DFC3B, or WS-F6K-DFC3BXL daughter cards. |
| Refer to the Catalyst 6500 Series DFC, DFC3A, DFC3B, and DFC3BXL Installation Note for additional information and field upgrade procedures. | |
| Pluggable transceivers support | GBIC transceivers are supported. Refer to your software release notes to determine which GBIC transceivers are supported. See the '1-GB Transceivers' section in Appendix B for additional information on the GBIC transceivers. |
| Digital Optical Monitoring (DOM) support | Supported on some GBIC transceivers. |
| Note Refer to your software release notes for specific information on which GBIC transceivers support DOM and the software release required for support. | |
| Module front panel LEDs | STATUS |
| Green—All diagnostics pass, the module is operational. | |
| Orange—The module is booting or running diagnostics, an overtemperature condition has occurred. | |
| LINK | |
| Green—The port is active (the link is connected and operational). | |
| Flashing orange—The port failed diagnostics and is disabled. | |
| Orange—The port is disabled. | |
| Red—The module is resetting, an overtemperature condition has occurred. | |
| Note If the module fails to download code and configuration information successfully during the initial reset, the LED stays red, the module does not come online. | |
| Off—The port is not active or the link is not connected. | |
| Dimensions (H x W x D) | 1.2 x 14.4 x 16 in. (3.0 x 35.6 x 40.6 cm). Occupies one slot in the chassis. |
| Weight | 8.6 lb (3.9 kg) |

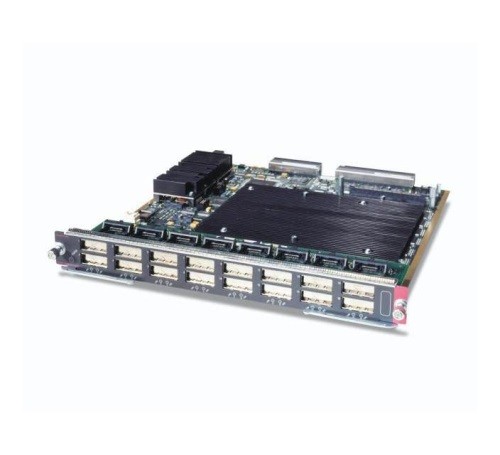

| Power and heat numbers (continued) | WS-X6516A-GBIC (enhanced base module) |
| –Module current—3.62 A | |
| –Module power—152.04 W | |
| –AC-input power—190.05 W | |
| –AC heat dissipation—649.02 BTU/hour | |
| –DC-input power—204.35 W | |
| –DC heat dissipation—697.87 BTU/hour | |
| Operating temperature | Certified for operation: 32° to 104°F (0° to 40°C) |
| Designed and tested for operation: 32° to 130°F (0° to 55°C) | |
| Humidity (RH) ambient (noncondensing) | 10 to 90% |
Характеристики
Производитель | Cisco |
GPL | $15,000 |
