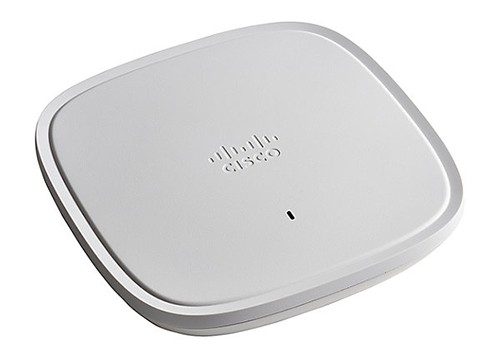

Точка доступа Cisco Catalyst, 802.11ax, встроенные антенны C9115AXI-E

Программное обеспечение

Cisco Unified Wireless Network Software Release 8.9 or later

Cisco IOS ® XE Software Release 16.11 or later

Поддерживает контроллеры

Cisco Catalyst 9800

Cisco 3500, 5520, и 8540, а также виртуальный контроллер Cisco

802.11n версии 2.0

4x4 MIMO with four spatial streams

Maximal Ratio Combining (MRC)

802.11n and 802.11a/g beamforming

20- and 40-MHz channels

PHY data rates up to 890 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

802.11 Dynamic Frequency Selection (DFS)

Cyclic Shift Diversity (CSD) support

802.11ac

4x4 downlink MU-MIMO with four spatial streams

MRC

802.11ac beamforming

20-, 40-, 80-, and 160-MHz channels

PHY data rates up to 3.47 Gbps (160 MHz with 5 GHz)

Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

802.11 DFS

CSD support

802.11ax

4x4 downlink MU-MIMO with four spatial streams

Uplink/downlink OFDMA

TWT

BSS coloring

MRC

802.11ax beamforming

20-, 40-, 80-, and 160-MHz channels

PHY data rates up to 5.38 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

802.11 DFS

CSD support

Встроенные антенны

2.4 GHz, peak gain 3 dBi, internal antenna, omnidirectional in azimuth

5 GHz, peak gain 4 dBi, internal antenna, omnidirectional in azimuth

Внешние антенны (продаются отдельно)

Cisco Catalyst 9115AXE Access Points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

Интерфейсы

1x 100, 1000, 2500 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

Management console port (RJ-45)

USB 2.0 (enabled via future software)

Индикаторы

Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Габариты (W x L x H)

C9115I: 20.3 x 20.3 x 3.8 cm,

C9115E: 20.3 x 20.3 x 4.3 cm

Питание

802.3at Power over Ethernet Plus (PoE+), 802.3bt Cisco Universal PoE (Cisco UPOE+, Cisco UPOE ®)

Cisco power injector, AIR-PWRINJ6=

802.3af PoE

Cisco power injector, AIR-PWRINJ5= (Note: This injector supports only 802.3af)

Note: When 802.3af PoE is the source of power, both 2.4-GHz and 5-GHz radios will be reduced to 2x2 and Ethernet downgraded to 1 Gigabit Ethernet. In addition, the USB port will be off.

Окружающая среда

Cisco Catalyst 9115AXI

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25?C, 15,000 ft.

Operating temperature: 32° to 122°F (0° to 50°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40?C, 9843 ft.

Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 4x4 to 2x2 on both the 2.4-GHz and 5-GHz radios, uplink Ethernet will downgrade to 1 Gigabit Ethernet, and the USB interface will be disabled.

Cisco Catalyst 9115AXE

Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

Nonoperating (storage) altitude test: 25?C, 15,000 ft.

Operating temperature: -4° to 122°F (-20° to 50°C)

Operating humidity: 10% to 90% (noncondensing)

Operating altitude test: 40?C, 9843 ft.

Память

2048 MB DRAM

1024 MB flash

Доступные опции

2.4 GHz

23 dBm (200 mW)

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1dBm (0.79mW)

-4dBm (0.39mW)

5 GHz

23 dBm (200 mW)

20 dBm (100 mW)

17 dBm (50 mW)

14 dBm (25 mW)

11 dBm (12.5 mW)

8 dBm (6.25 mW)

5 dBm (3.13 mW)

2 dBm (1.56 mW)

-1dBm (0.79mW)

-4dBm (0.39mW)

Frequency band and 20-MHz operating channels

E (E regulatory domain):

2.412 to 2.472 GHz, 13 channels

5.180 to 5.320 GHz, 8 channels

5.500 to 5.700 GHz, 8 channels

(excludes 5.600 to 5.640 GHz)
