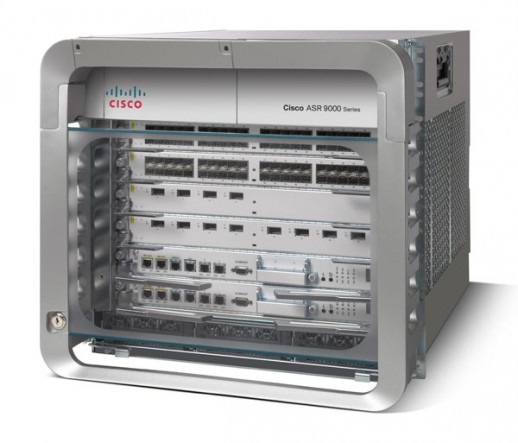

| Specification | Cisco ASR 9010 |
| Physical specifications | Height: 36.75 in. (933.45 mm) (21 RU) Width: 17.38 in. (441.45 mm) Depth: ? With doors: 29.03 in. (737.4 mm) ? Without doors: 28.24 in. (717.3 mm)Weight: ? 155.6 lb (70.73 kg) (chassis with PEM) 231.6 lb (105.27 kg) (fully loaded, excluding linecards and power modules) – RSP, two v2 fan trays, PEMs |
| Slot orientation | Vertical |
| Cisco ASR 9000 Series RSP | Dual redundant RSPs with integrated fabric in 2 slots |
| Cisco ASR 9000 Series line cards | 8 line-card slots |
| “Commons” components | 2 RSPs 2 fan trays 2 PEMs (either DC or AC) 1 fan filter |
| Reliability and availability | Fabric redundancy Fan redundancy Feed redundancy Power-supply redundancy RSP redundancy Software redundancy |
| Rack mounting | 19-in. default 21- and 23-in. adapters available Note: Minimum 17.75-in. opening between posts is needed for proper operation |
| Cabinet mounting | Yes Note: Doors not recommended in enclosed cabinets |
| Wall mounting | No |
| Airflow | Front-to-back |
| Performance | |
| Fabric | One per RSP: ? Active/active nonblocking operation mode in dual-RSP redundant configuration ? Fully redundant in dual-RSP redundant configuration ? Built-in service-intelligence and traffic-prioritization capability |
| Thermal | Two fan trays: ? 12 high-efficiency fans per tray ? Variable-speed fans for optimal thermal performance ? No single point of failure |
| Power | |
| Modularity | Pay-as-you-grow power for future scalability, available in AC and DC. Multiple power module types: ? 6 kW and 3 kW AC power modules ? 4.4 kW and 2.1 kW DC power modules Note: Mixing of AC and DC modules is not supported |
| Redundancy | ? AC: N+N redundancy ? DC: N+1 redundancy ? Power module redundancy ? A/B Feed redundancy ? PEM redundancy |
| Power zones | No power zone restrictions Fully load-sharing power infrastructure |
| Power input | Worldwide ranging AC (200-240V, 50-60 Hz, 16A maximum) Worldwide ranging DC (-40 to -72V, 50A nominal, 60A maximum) |
| Power-module airflow | Front-to-back |
| Environmental Specifications (All Entries Applicable to Cisco ASR 9006 and ASR 9010) | |
| Operating temperature (nominal) | 41 to 104?F (5 to 40?C) |
| Operating temperature (short-term) | ASR 9010: 23 to 122?F (-5 to 50?C) |
| Operating humidity (nominal) (relative humidity) | 5 to 90% |
| Storage temperature | -40 to 158?F (-40 to 70?C) |
| Storage (relative humidity) | 5 to 93% |
| Operating altitude | -60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements) |
| Regulatory Compliance (All Entries Applicable to Cisco ASR 9006 and ASR 9010) | |
| Network Equipment Building Standards (NEBS) | Cisco ASR 9006 and ASR 9010 Routers are designed to meet: ? SR-3580: NEBS Criteria Levels (Level 3) ? GR-1089-CORE: NEBS EMC and Safety ? GR-63-CORE: NEBS Physical Protection ? VZ.TPR.9205: Verizon TEEER |
| ETSI Standards | Cisco ASR 9006 and ASR 9010 Routers are designed to meet: ? EN300 386: Telecommunications Network Equipment (EMC) ? ETSI 300 019 Storage Class 1.1 ? ETSI 300 019 Transportation Class 2.3 ? ETSI 300 019 Stationary Use Class 3.1 |
| EMC standards emission | Cisco ASR 9006 and ASR 9010 Routers are designed to meet: ? FCC Class 47CFR15 A ? ICES 003 Class A ? AS/NZS CISRP22 Class A ? CISPR 22 (EN55022) Class A ? VCCI Class A ? BSMI Class A ? IEC/EN 61000-3-12: Power Line Harmonics ? IEC/EN 61000-3-11: Voltage Fluctuations and Flicker ? EN55022: Information Technology Equipment (Emissions) ? EN 50121-4: Railway EMC |
| EMC standards immunity | Cisco ASR 9006 and ASR 9010 Routers are designed to meet: ? IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air) ? IEC/EN-61000-4-3: Radiated Immunity (10V/m) ? IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal) ? IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM) ? IEC/EN-61000-4-5: Signal Surge Ports (1kV) ? IEC/EN-61000-4-5: Surge DC Port (1kV CM, 1kV DM) ? IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms) ? IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m) ? IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations ? EN55024: Information Technology Equipment (Immunity) ? EN50082-1/EN-61000-6-1: Generic Immunity Standard ? EN 50121-4: Railway EMC |
| Safety | Cisco ASR 9006 and ASR 9010 Routers are designed to meet: ? UL/CSA/IEC/EN 60950-1 ? IEC/EN 60825 Laser Safety ? ACA TS001 ? AS/NZS 60950 ? FDA Code of Federal Regulations Laser Safety |
Производитель | Cisco |
GPL | $14,975 |
